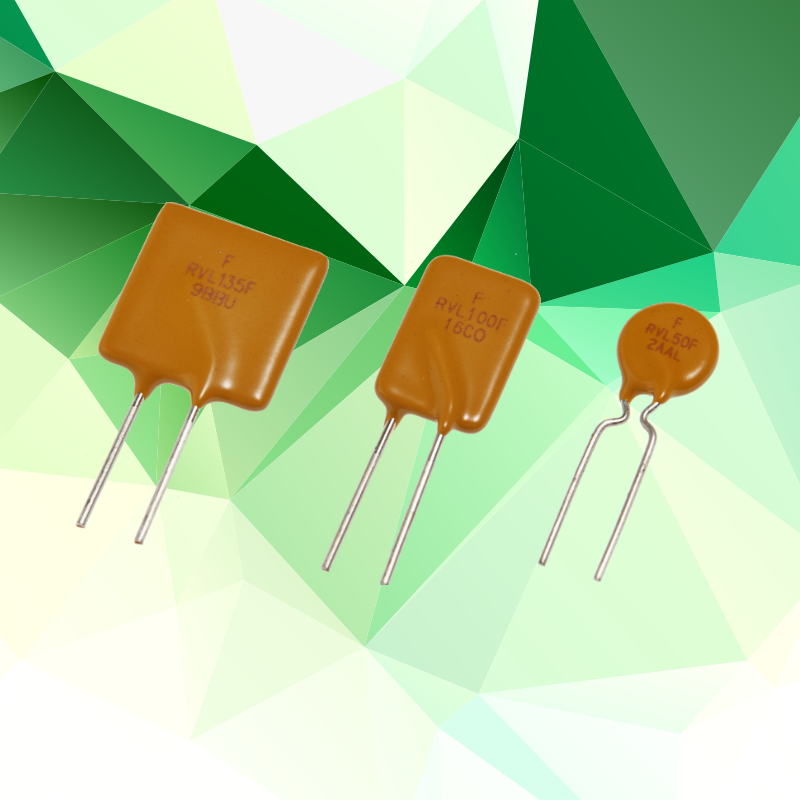

FRVL Series - Radial Leaded PTC








Application
Line Voltage Power Supply, Transformer and Appliances Product
Feature
Solid state, Radial leaded product ideal for up to 120VAC/DC
Maximum Operation Current
0.10A~3.75A
Maximum Voltage
120VAC/DC
Maximum Interrupt Voltage
135VAC/DC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R50122733
Electrical Characteristics (23°C)
Part Number
Hold
Current
Trip
Current
Max
Current
Max. Oper.
Voltage
Max. Int.
Voltage
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
IMAX, A
V I-MAX, V AC/DC
VMAX, V AC/DC
Pd, W
@ 5 x IH, S
Rmin
R1max
FRVL010-120F
0.10
0.20
2.0
120
135
0.84
 10.0
3.00
7.50
FRVL017-120F
0.17
0.34
2.0
120
135
0.84
 10.0
2.00
7.00
FRVL020-120F
0.20
0.40
2.0
120
135
1.08
 9.0
1.83
4.40
FRVL025-120F
0.25
0.50
3.0
120
135
1.08
 7.5
1.25
3.00
FRVL030-120F
0.30
0.60
3.0
120
135
1.44
 8.5
0.88
2.10
FRVL040-120F
0.40
0.80
3.0
120
135
1.44
 6.5
0.55
1.29
FRVL050-120F
0.50
1.00
3.0
120
135
1.56
 6.0
0.50
1.17
FRVL065-120F
0.65
1.30
5.0
120
135
1.68
 5.7
0.31
0.72
FRVL070-120F
0.75
1.50
5.0
120
135
1.80
 6.3
0.25
0.60
FRVL075-120F
0.75
1.50
7.5
120
135
2.64
 15.0
0.25
0.69
FRVL090-120F
0.90
1.80
5.0
120
135
1.80
 7.2
0.20
0.47
FRVL100-120F
1.00
2.00
10.0
120
135
2.64
 15.0
0.18
0.47
FRVL110-120F
1.10
2.20
8.0
120
135
2.28
 8.2
0.15
0.38
FRVL125-120F
1.25
2.50
12.5
120
135
2.88
 20.0
0.11
0.33
FRVL130-120F
1.35
2.70
10.0
120
135
2.64
 9.6
0.12
0.30
FRVL135-120F
1.35
2.70
13.5
120
135
3.12
 20.0
0.11
0.30
FRVL160-120F
1.60
3.20
12.0
120
135
3.12
 11.4
0.09
0.22
FRVL185-120F
1.85
3.70
12.0
120
135
3.36
 12.6
0.08
0.19
FRVL200-120F
2.00
4.20
20.0
120
135
4.32
 36.0
0.08
0.21
FRVL250-120F
2.50
5.00
15.0
120
135
4.44
 15.6
0.05
0.13
FRVL300-120F
3.00
6.00
17.0
120
135
4.56
 19.8
0.04
0.10
FRVL375-120F
3.75
7.50
20.0
120
135
4.86
 24.0
0.03
0.08



Thermal Derating
Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
158%
138%
119%
100%
90%
80%
70%
60%
50%
38%

Product Dimension
Product Fig

Fig1

Lead Size: 24AWG

Ø 0.51 mm

Fig 2

Lead Size: 22AWG

Ø 0.65 mm

Fig3

Lead Size: 20AWG

Ø 0.81 mm

Fig 4

Lead Size: 20AWG

Ø 0.81 mm

Part Number
Fig.
A
B
C
D
E
F
Max
Max
Typ
Max
Max
Typ
FRVL010-120F
1
7.9
13.0
5.1
7.6
3.8
2.2
FRVL017-120F
1
7.9
13.0
5.1
7.6
3.8
2.2
FRVL020-120F
2
7.9
13.0
5.1
7.6
3.8
2.2
FRVL025-120F
2
7.9
13.0
5.1
7.6
3.8
2.2
FRVL030-120F
2
7.9
13.0
5.1
7.6
3.8
2.2
FRVL040-120F
2
8.2
14.2
5.1
7.6
3.8
2.2
FRVL050-120F
2
9.2
14.9
5.1
7.6
3.8
2.2
FRVL065-120F
2
9.7
14.9
5.1
7.6
3.8
2.2
FRVL070-120F
2
10.6
15.5
5.1
7.6
3.8
2.2
FRVL075-120F
4
10.9
17.0
5.1
7.6
4.1
2.2
FRVL090-120F
2
11.9
15.9
5.1
7.6
3.8
2.2
FRVL100-120F
4
11.5
20.1
5.1
7.6
4.1
2.2
FRVL110-120F
3
13.3
18.3
5.1
7.6
4.1
2.2
FRVL125-120F
4
14.0
21.7
5.1
7.6
4.1
2.2
FRVL130-120F
3
15.5
20.6
5.1
7.6
4.1
2.2
FRVL135-120F
4
16.3
21.7
5.1
7.6
4.1
2.2
FRVL160-120F
3
17.5
22.5
5.1
7.6
4.1
2.2
FRVL185-120F
3
19.9
24.9
5.1
7.6
4.1
2.2
FRVL200-120F
4
23.5
27.9
10.2
7.6
4.1
2.2
FRVL250-120F
3
22.5
27.5
10.2
7.6
4.1
2.2
FRVL300-120F
3
25.5
30.0
10.2
7.6
4.1
2.2
FRVL375-120F
3
29.5
34.0
10.2
7.6
4.1
2.2
