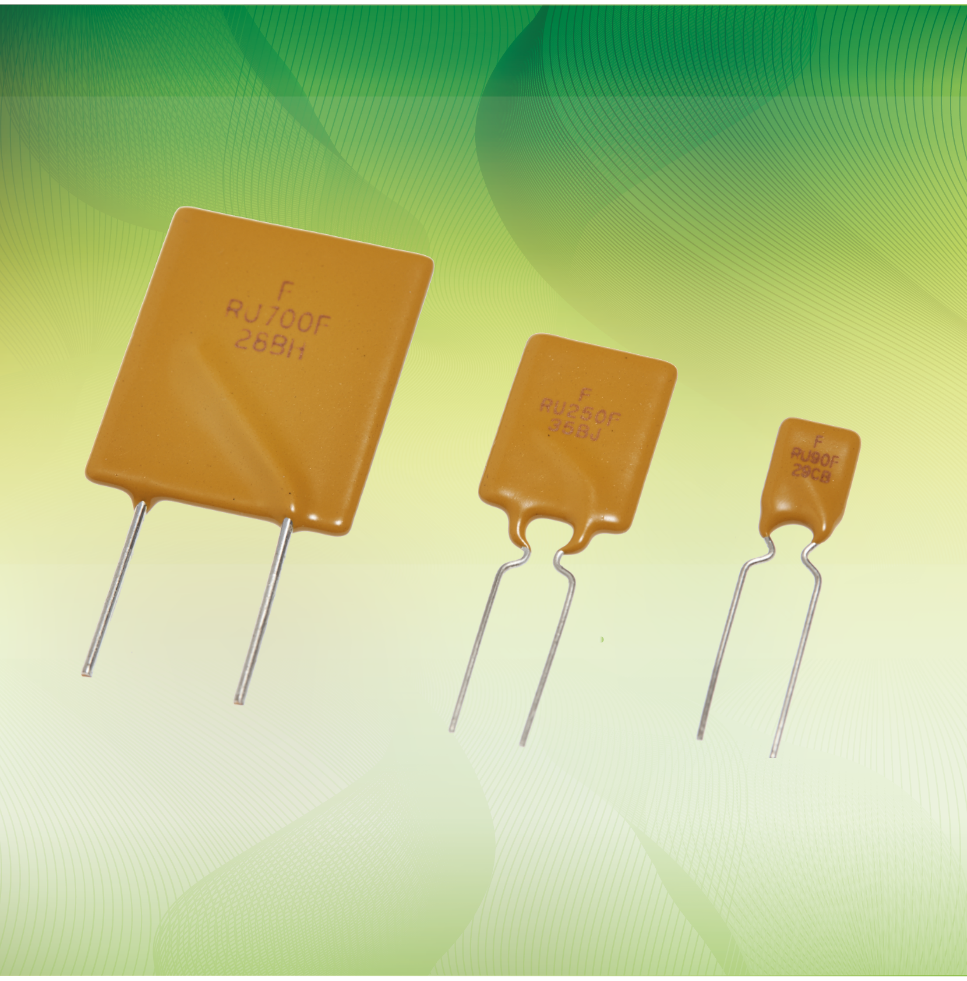

FRU Series - Radial Leaded PTC








Application
Wide variety of electronic equipment
Feature
Low resistance, High hold current, Solid state Radial-leaded product ideal for up to 30VDC
Operation Current
0.9A~9.0A
Maximum Voltage
30 VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R50004084
Electrical Characteristics (23°C)
Part
Number
Hold
Current
Trip
Current
Max.
Time to Trip
Max
Current
Rated
Voltage
Typ.
Power
Resistance
IH, A
IT, A
@ 5 x IH, s
IMAX, A
V Max, V DC
V Max, V DC
Rmin
R1max
FRU090-30F
0.90
1.80
5.9
100
30
0.6
0.070
0.220
FRU110-30F
1.10
2.20
6.6
100
30
0.7
0.050
0.170
FRU135-30F
1.35
2.70
7.3
100
30
0.8
0.040
0.130
FRU160-30F
1.60
3.20
8.0
100
30
0.9
0.030
0.110
FRU185-30F
1.85
3.70
8.7
100
30
1.0
0.030
0.090
FRU250-30F
2.50
5.00
10.3
100
30
1.2
0.020
0.070
FRU300-30F
3.00
6.00
10.8
100
30
2.0
0.020
0.080
FRU400-30F
4.00
8.00
12.7
100
30
2.5
0.010
0.050
FRU500-30F
5.00
10.00
14.5
100
30
3.0
0.010
0.050
FRU600-30F
6.00
12.00
16.0
100
30
3.5
0.005
0.040
FRU700-30F
7.00
14.00
17.5
100
30
3.8
0.005
0.030
FRU800-30F
8.00
16.00
18.8
100
30
4.0
0.005
0.020
FRU900-30F
9.00
18.00
20.0
100
30
4.2
0.005
0.020



Thermal Derating
Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
145%
130%
115%
100%
92%
84%
76%
70%
61%
50%

Product Dimension

                                                             Product Fig

Fig1

Lead Size: 24AWG

Ø 0.51 mm

Fig 2

Lead Size: 20AWG

Ø 0.81 mm

Part Number
Fig.
A
B
C
D
E
F
Max
Max
Typ
Min
Max
Typ.
FRU090-30F
1
7.4
12.2
5.1
7.6
3.0
0.9
FRU110-30F
1
7.4
14.2
5.1
7.6
3.0
0.9
FRU135-30F
1
8.9
13.5
5.1
7.6
3.0
0.9
FRU160-30F
1
8.9
15.2
5.1
7.6
3.0
0.9
FRU185-30F
1
10.2
15.7
5.1
7.6
3.0
0.9
FRU250-30F
1
11.4
18.3
5.1
7.6
3.0
0.9
FRU300-30F
2
11.4
17.3
5.1
7.6
3.0
1.2
FRU400-30F
2
14.0
20.1
5.1
7.6
3.0
1.2
FRU500-30F
2
14.0
24.9
10.2
7.6
3.0
1.2
FRU600-30F
2
16.5
24.9
10.2
7.6
3.0
1.2
FRU700-30F
2
19.1
26.7
10.2
7.6
3.0
1.2
FRU800-30F
2
21.6
29.2
10.2
7.6
3.0
1.2
FRU900-30F
2
24.1
29.7
10.2
7.6
3.0
1.2
