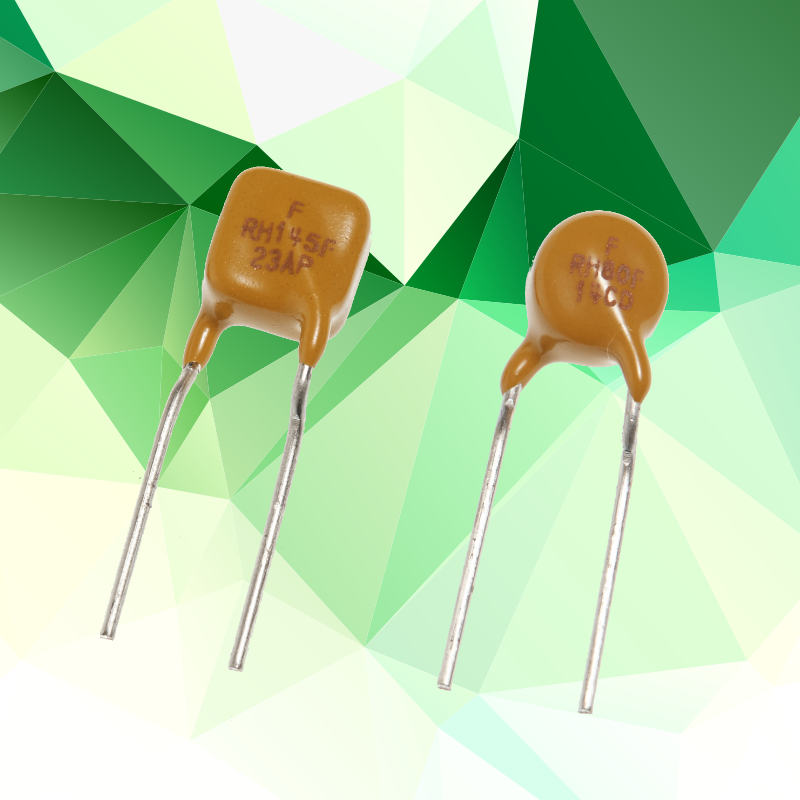

FRHV Series - Radial Leaded PTC





*UL497A
Application
Telecommunication and Data transmitting
Feature
Low hold current, Solid state
Operation Current
0.08 A~0.40A
Maximum Operation Voltage
60V/100V/250VDC
Maximum Interrupt Voltage
250V/600VAC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R501138901
Electrical Characteristics (23°C)
Part Number
Hold
Current
Trip
Current
Max
Current
Max. Oper.
Voltage
Max. Int.
Voltage
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
IMAX, A
V MAX, V AC/DC
VI-MAX, V AC/DC
Pd, W
Current
Time
Rmin
R1max
FRH080-250VF
0.08
0.16
3.0
100
250
1.0
0.35
4.0
14.0
33.00
FRH110-250VF
0.11
0.22
3.0
100
250
1.0
1.00
2.0
5.00
16.00
FRH120-250VF
0.12
0.24
3.0
100
250
1.0
1.00
2.0
4.00
16.00
FRH145-250VF
0.15
0.29
3.0
100
250
1.0
1.00
2.5
3.00
12.00
FRH180-250XF
0.18
0.65
10.0
100
250
1.5
3.00
2.0
0.80
4.00
FRH150-600MF
0.15
0.30
3.0
250
600
1.0
1.00
4.0
6.00
17.00
FRH160-600MF
0.16
0.32
3.0
250
600
1.0
1.00
7.0
4.00
16.00
FRH160-600VF
0.16
0.32
3.0
250
600
1.0
1.00
7.0
4.00
18.00
FRH200-600VF
0.20
0.40
3.0
250
600
1.0
1.00
12.0
4.00
13.50
FRH250-600VF
0.25
0.86
3.0
250
600
1.0
3.00
1.0
1.00
7.00
FRH400-600F
0.40
1.00
3.0
60
600
1.0
3.00
4.0
0.95
1.90



Thermal Derating
Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
158%
138%
119%
100%
92%
83%
73%
64%
54%
40%

Product Dimension

                                                                                              Product Fig

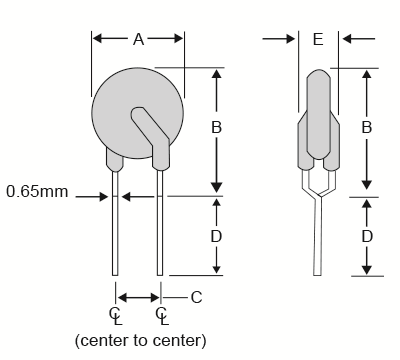

Fig1

Lead Size: 22AWG

Ø 0.65 mm

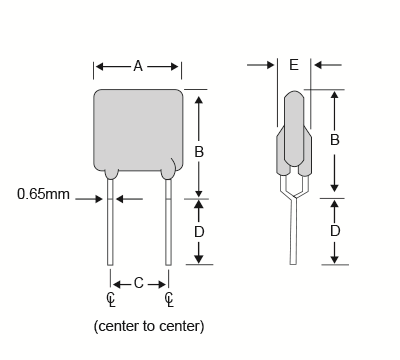

Fig 2

Lead Size: 22AWG

Ø 0.65 mm

Part Number
Fig.
A
B
C
D
E
Max
Max
Typ
Min
Max
FRH080-250VF
1
5.8
9.6
5.0
4.7
4.6
FRH110-250VF
1
6.8
9.9
5.0
4.7
4.6
FRH120-250VF
2
6.5
11.0
5.0
4.7
4.6
FRH145-250VF
2
6.5
11.0
5.0
4.7
4.6
FRH180-250XF
1
9.0
12.0
5.0
4.7
3.8
FRH150-600MF
2
9.0
12.5
5.0
4.7
4.6
FRH160-600MF
2
9.0
12.5
5.0
4.7
4.6
FRH160-600VF
2
16.0
12.6
5.0
4.7
6.0
FRH200-600VF
2
12.0
14.0
5.0
4.7
6.0
FRH250-600VF
2
12.0
15.0
5.0
4.7
6.0
FRH400-600F
2
15.0
14.5
5.0
4.7
6.0
