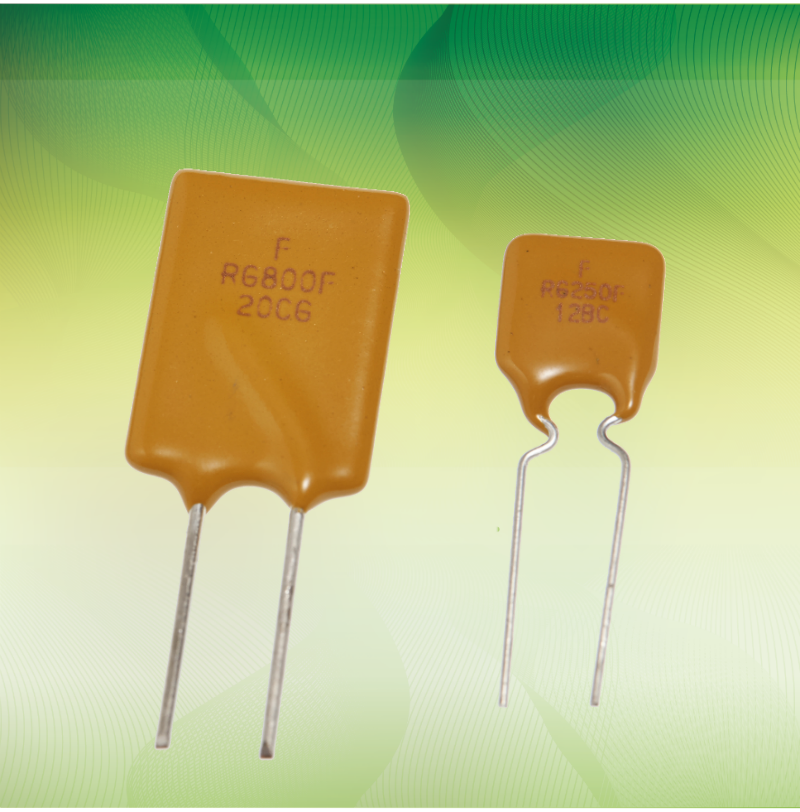

FRG Series - Radial Leaded PTC








Application
Wide Variety of Electronic Equipment
Feature
Very high hold current, Solid state Radial-leaded product ideal for up to 16VDC
Operation Current
2.5 A~14.0A
Maximum Voltage
16VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R50004084
Electrical Characteristics (23°C)

Part
Number
Hold
Current
Trip
Current
Max.
Time to Trip
Max
Current
Rated
Voltage
Typ.
Power
Resistance
IH, A
IT, A
@ 5 x IH, s
IMAX, A
Max, V DC
Pd, W
Rmin
R1max
FRG250-16F
2.5
4.7
5.0
100
16
1.0
0.022
0.053
FRG300-16F
3.0
5.1
2.0
100
16
2.3
0.034
0.105
FRG400-16F
4.0
6.8
3.5
100
16
2.4
0.020
0.063
FRG500-16F
5.0
8.5
3.6
100
16
2.6
0.014
0.044
FRG600-16F
6.0
10.2
5.8
100
16
2.8
0.009
0.033
FRG700-16F
7.0
11.9
8.0
100
16
3.0
0.006
0.021
FRG800-16F
8.0
13.6
9.0
100
16
3.0
0.005
0.018
FRG900-16F
9.0
15.3
12.0
100
16
3.3
0.004
0.015
FRG1000-16F
10.0
17.0
12.5
100
16
3.3
0.003
0.012
FRG1100-16F
11.0
18.7
13.5
100
16
3.7
0.003
0.010
FRG1200-16F
12.0
20.4
16.0
100
16
4.2
0.002
0.009
FRG1400-16F
14.0
23.8
20.0
100
16
4.6
0.002
0.008



Thermal Deratng
Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
148%
132%
116%
100%
91%
84%
76%
69%
60%
48%

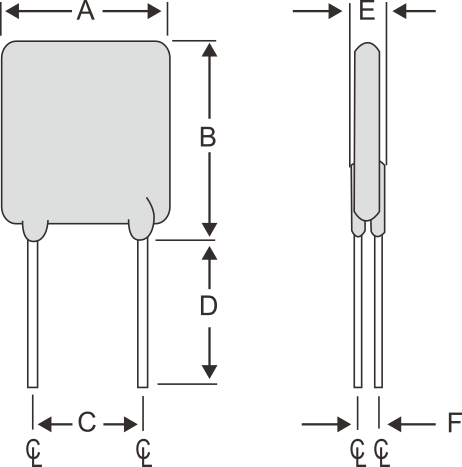

Product Dimension
Product Fig

Fig1

Lead Size: 24AWG

Ø 0.51 mm

Fig 2

Lead Size: 20AWG

Ø 0.81 mm

Fig.3

Lead Size: 18AWG

Ø 1.0 mm

Part Number
Fig.
A
B
C
D
E
F
Max
Max
Typ
Min
Max
Typ
FRG250-16F
1
8.9
12.8
5.1
7.6
3.0
1.2
FRG300-16F
2
7.1
11.0
5.1
7.6
3.0
1.2
FRG400-16F
2
8.9
12.8
5.1
7.6
3.0
1.2
FRG500-16F
2
10.4
14.3
5.1
7.6
3.0
1.2
FRG600-16F
2
10.7
17.1
5.1
7.6
3.0
1.2
FRG700-16F
2
11.2
19.7
5.1
7.6
3.0
1.2
FRG800-16F
2
12.7
20.9
5.1
7.6
3.0
1.2
FRG900-16F
2
14.0
21.7
5.1
7.6
3.0
1.2
FRG1000-16F
2
16.5
24.1
5.1
7.6
3.0
1.2
FRG1100-16F
2
17.5
26.0
5.1
7.6
3.0
1.2
FRG1200-16F
3
17.5
28.0
10.2
7.6
3.6
1.4
FRG1400-16F
3
27.9
27.9
10.2
7.6
3.6
1.4
