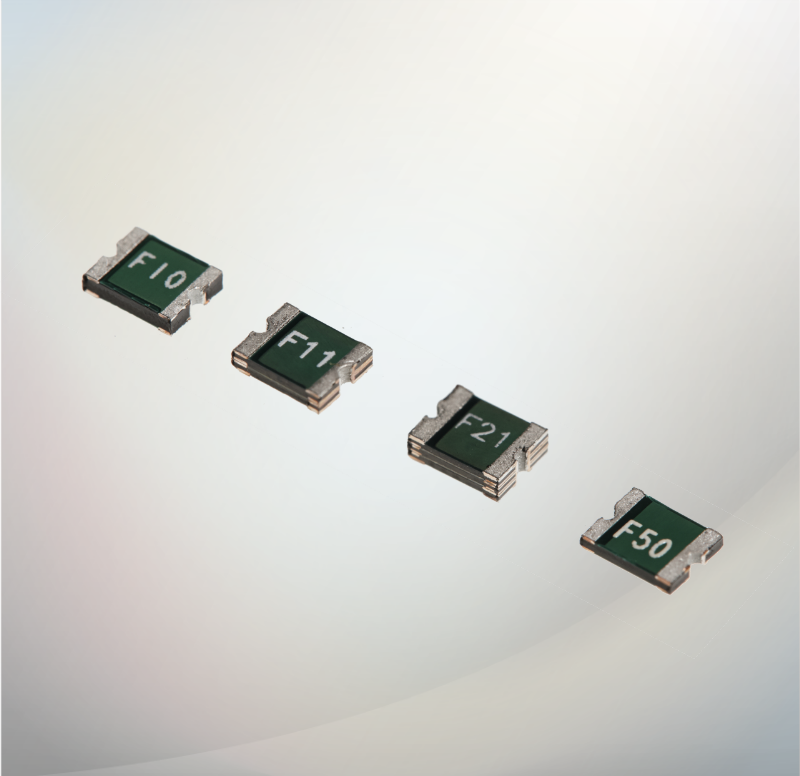

FSMD1210 Series






Application
All high-density boards
Feature
Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices
Operation Current
0.05A~2.00A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R50090556
Electrical Characteristics
Part
Number
Hold
Current
Trip
Current
Rated
Voltage
Max
Current
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
VMAX, VDC
IMAX, A
Pd, W
Current
Time
Rmin
R1max
FSMD005-1210-R
0.05
0.15
60
100
0.60
0.25
1.50
3.600
50.000
FSMD010-1210-R
0.10
0.25
60
100
0.60
0.50
1.50
1.600
15.000
FSMD020-1210-R
0.20
0.40
30
100
0.60
8.00
0.02
0.800
5.000
FSMD035-1210-R
0.35
0.70
16
100
0.60
8.00
0.20
0.320
1.300
FSMD050-1210-R
0.50
1.00
16
100
0.60
8.00
0.10
0.250
0.900
FSMD075-1210-R
0.75
1.50
8
100
0.60
8.00
0.10
0.130
0.400
FSMD075-24-1210R
0.75
1.50
24
100
0.60
8.00
0.10
0.130
0.400
FSMD110-1210R
1.10
2.20
8
100
0.80
8.00
0.30
0.060
0.210
FSMD110-16-1210R
1.10
2.20
16
100
0.80
8.00
0.30
0.060
0.210
FSMD150-1210R
1.50
3.00
6
100
0.80
8.00
0.50
0.040
0.110
FSMD175-1210R
1.75
4.00
6
100
0.80
8.00
0.60
0.020
0.080
FSMD200-1210R
2.00
4.00
6
100
0.80
8.00
1.00
0.015
0.070

Thermal Derating
Thermal Derating
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
145%
130%
115%
100%
92%
83%
76%
70%
62%
50%

Product Dimension
Part Number
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
FSMD005-1210-R
3.00
3.43
2.35
2.80
0.60
1.15
0.25
0.75
0.10
0.45
FSMD010-1210-R
3.00
3.43
2.35
2.80
0.60
1.15
0.25
0.75
0.10
0.45
FSMD020-1210-R
3.00
3.43
2.35
2.80
0.40
0.85
0.25
0.75
0.10
0.45
FSMD035-1210-R
3.00
3.43
2.35
2.80
0.40
0.80
0.25
0.75
0.10
0.45
FSMD050-1210-R
3.00
3.43
2.35
2.80
0.30
0.75
0.25
0.75
0.10
0.45
FSMD075-1210-R
3.00
3.43
2.35
2.80
0.30
0.70
0.25
0.75
0.10
0.45
FSMD075-24-1210R
3.00
3.43
2.35
2.80
0.80
1.20
0.25
0.75
0.10
0.45
FSMD110-1210R
3.00
3.43
2.35
2.80
0.60
1.00
0.25
0.75
0.10
0.45
FSMD110-16-1210R
3.00
3.43
2.35
2.80
0.60
1.00
0.25
0.75
0.10
0.45
FSMD150-1210R
3.00
3.43
2.35
2.80
0.50
0.90
0.25
0.75
0.10
0.45
FSMD175-1210R
3.00
3.43
2.35
2.80
0.80
1.40
0.25
0.75
0.10
0.45
FSMD200-1210R
3.00
3.43
2.35
2.80
0.80
1.40
0.25
0.75
0.10
0.45
