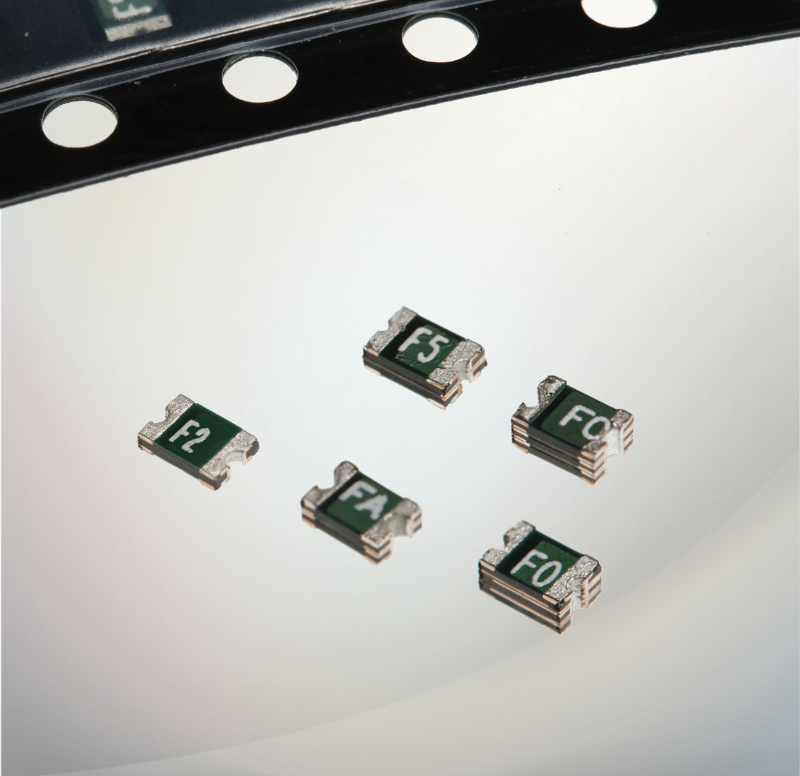

FSMD0805 Series






Application
All high-density boards
Feature
Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices
Operation Current
0.1A~1.0A
Maximum Voltage
6V~15VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
E211981
E211981
R50090556
Electrical Characteristics
Part
Number
Hold
Current
Trip
Current
Rated
Voltage
Max
Current
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
VMAX, VDC
IMAX, A
Pd, W
Current
Time
Rmin
R1max
FSMD010-0805-R
0.10
0.30
15
100
0.5
0.50
1.50
0.700
6.000
FSMD010-24-0805-R
0.10
0.30
24
100
0.5
0.50
1.50
0.700
6.000
FSMD020-0805-R
0.20
0.50
9
100
0.5
8.00
0.02
0.400
3.500
FSMD035-0805R
0.35
0.75
6
100
0.5
8.00
0.10
0.250
1.200
FSMD050-0805R
0.50
1.00
6
100
0.5
8.00
0.10
0.150
0.850
FSMD050-9-0805R
0.50
1.00
9
100
0.5
8.00
0.10
0.150
0.850
FSMD075-0805R
0.75
1.50
6
100
0.6
8.00
0.20
0.090
0.350
FSMD100-0805R
1.00
1.50
6
100
0.6
8.00
0.30
0.060
0.210
FSMD110-0805R
1.10
2.20
6
100
0.6
8.00
0.20
0.050
0.170



Thermal Derating
Temperature
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
145%
130%
116%
100%
91%
84%
76%
69%
61%
50%

Product Dimension
Part Number
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
FSMD010-0805-R
2.00
2.30
1.20
1.50
0.30
1.00
0.10
0.60
0.10
0.45
FSMD010-24-0805-R
2.00
2.30
1.20
1.50
0.30
1.00
0.10
0.60
0.10
0.45
FSMD020-0805-R
2.00
2.30
1.20
1.50
0.30
1.00
0.10
0.60
0.10
0.45
FSMD035-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
FSMD050-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
FSMD050-9-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
FSMD075-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
FSMD100-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
FSMD110-0805R
2.00
2.30
1.20
1.50
0.55
1.25
0.10
0.60
0.10
0.45
