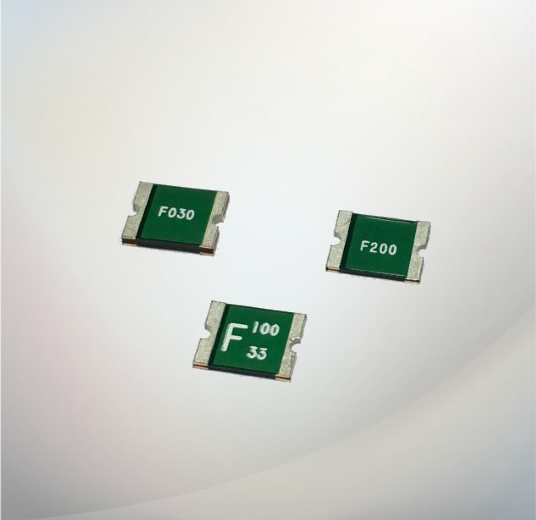

FSMD2016 Series







Application
All high-density boards
Feature
Small surface mount, Solid state Faster time to trip than standard SMD devices Lower resistance than standard SMD devices
Operation Current
0.30A~2.00A
Maximum Voltage
6V~60VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY AGENCY FILE NUMBER
In Progress
In Progress
R50090556
Electrical Characteristics
Part
Number
Hold
Current
Trip
Current
Rated
Voltage
Max
Current
Typical
Power
Max Time to Trip
Resistance
IH, A
IT, A
VMAX, VDC
IMAX, A
Pd, W
Current
Time
Rmin
R1max
FSMD030-2016-R
0.30
0.60
60
100
1.4
1.5
3.0
0.500
2.300
FSMD050-2016R
0.50
1.10
60
100
1.4
2.5
5.0
0.450
1.000
FSMD100-2016-R
1.00
2.20
15
100
1.4
8.00
0.5
0.130
0.400
FSMD100-33-2016-R
1.00
2.20
33
100
1.4
8.00
0.5
0.100
0.400
FSMD150-2016-R
1.50
3.00
15
100
1.4
8.00
0.8
0.070
0.180
FSMD200-2016-R
2.00
4.20
6
100
1.4
8.00
3.0
0.048
0.100



Thermal Derating
Thermal Derating
-40℃
-20℃
0℃
23℃
30℃
40℃
50℃
60℃
70℃
85℃
Derating %
157%
133%
118%
100%
90%
80%
70%
60%
51%
36%

Product Dimension
Part Number
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
FSMD030-2016-R
4.72
5.44
3.70
4.43
0.40
1.15
0.30
1.50
0.25
0.65
FSMD050-2016R
4.72
5.44
3.70
4.43
0.40
1.70
0.30
1.50
0.25
0.65
FSMD100-2016-R
4.72
5.44
3.70
4.43
0.30
0.70
0.30
1.50
0.25
0.65
FSMD100-33-2016-R
4.72
5.44
3.70
4.43
0.30
0.70
0.30
1.50
0.25
0.65
FSMD150-2016-R
4.72
5.44
3.70
4.43
0.25
0.65
0.30
1.50
0.25
0.65
FSMD200-2016-R
4.72
5.44
3.70
4.43
0.25
0.55
0.30
1.50
0.25
0.65
