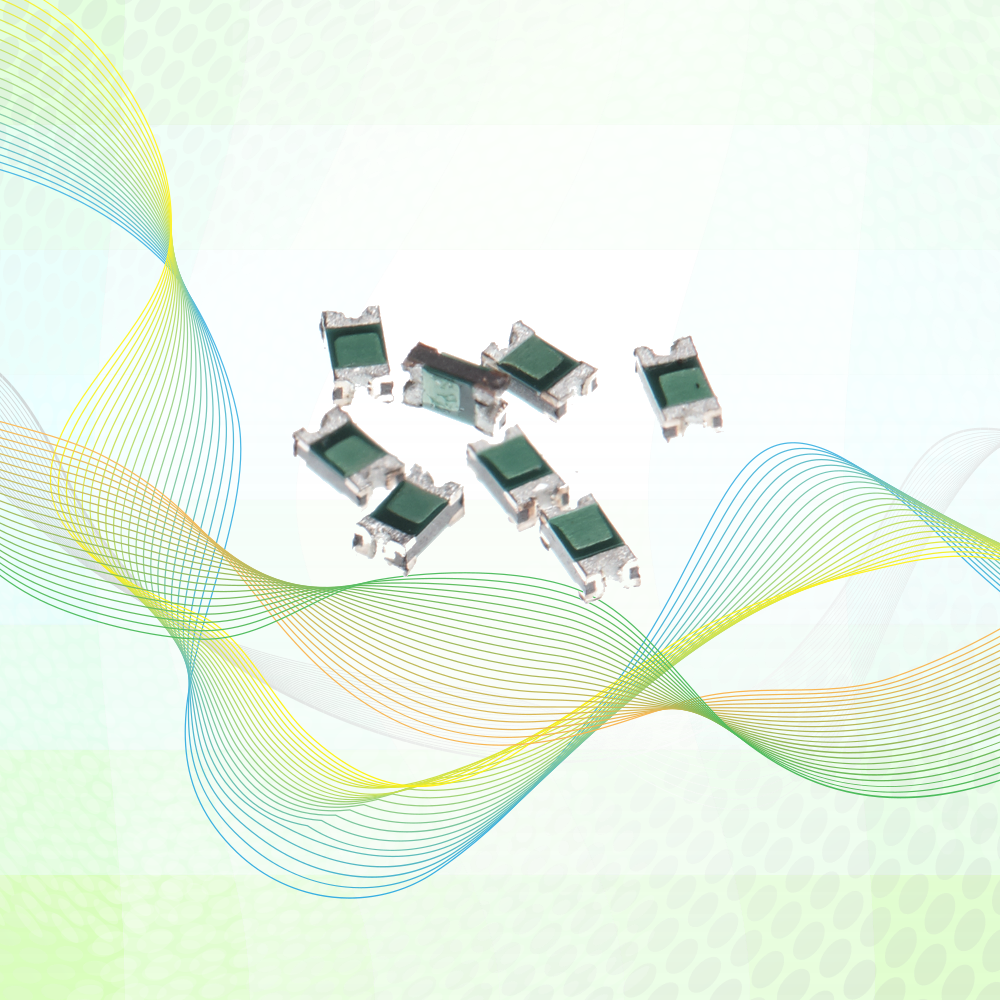

Low Rho FSMD0402 Series
Application
All high-density boards
Feature
Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices
Operation Current
0.10~0.50A
Maximum Voltage
6 VDC
Temperature Range
-40℃ to 85℃
Agency Recognition
AGENCY | AGENCY FILE NUMBER |
Under Progress |
Electrical Characteristics
Part
Number
|
Hold
Current |
Trip
Current |
Rated
Voltage |
Max
Current |
Typical
Power |
Max Time to Trip
|
Resistance
|
||
IH, A
|
IT, A
|
VMAX, VDC
|
IMAX, A
|
Pd, W
|
Current
|
Time
|
Rmin
|
R1max
|
|
FSMD010-0402RZ |
0.10
|
0.30
|
6
|
100
|
0.5
|
0.5
|
1.0
|
0.150
|
2.000
|
FSMD020-0402RZ |
0.20
|
0.50
|
6
|
100
|
0.5
|
1.0
|
1.0
|
0.100
|
1.250
|
FSMD035-0402RZ |
0.35
|
0.70
|
6
|
100
|
0.5
|
8.0
|
0.1
|
0.050
|
0.700
|
FSMD050-0402RZ |
0.50
|
1.00
|
6
|
100
|
0.5
|
8.0
|
0.1
|
0.040
|
0.400
|
Thermal Derating
Temperature
|
-40℃
|
-20℃
|
0℃
|
23℃
|
30℃
|
40℃
|
50℃
|
60℃
|
70℃
|
85℃
|
Derating %
|
145%
|
130%
|
115%
|
100%
|
92%
|
84%
|
77%
|
69%
|
61%
|
50%
|

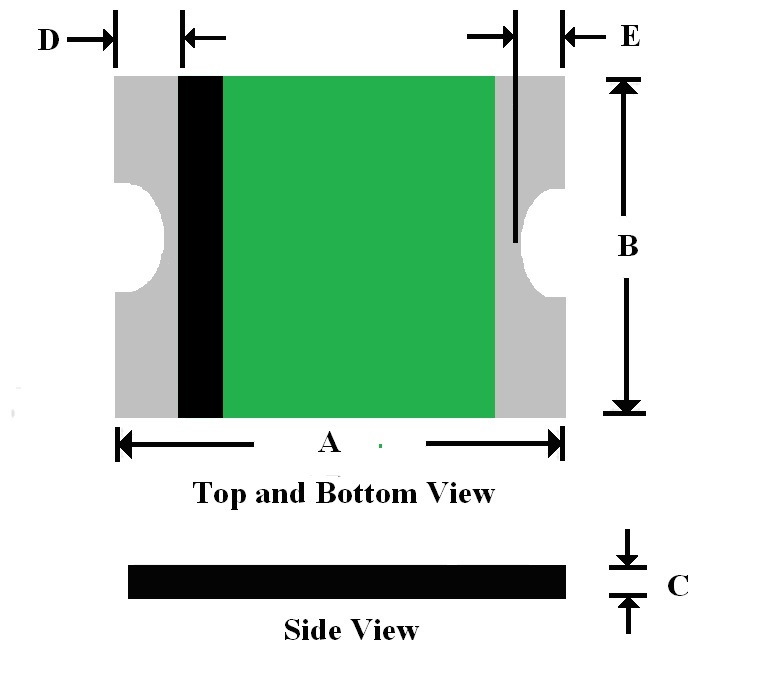

Product Dimension
Part Number
|
A
|
B
|
C
|
D
|
E
|
|||||
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
Min
|
Max
|
|
FSMD010-0402RZ |
0.85
|
1.15
|
0.35
|
0.65
|
0.30
|
0.60
|
0.10
|
0.45
|
0.05
|
0.40
|
FSMD020-0402RZ |
0.85
|
1.15
|
0.35
|
0.65
|
0.30
|
0.60
|
0.10
|
0.45
|
0.05
|
0.40
|
FSMD035-0402RZ |
0.85
|
1.15
|
0.35
|
0.65
|
0.30
|
0.60
|
0.10
|
0.45
|
0.05
|
0.40
|
FSMD050-0402RZ |
0.85
|
1.15
|
0.35
|
0.65
|
0.30
|
0.60
|
0.10
|
0.45
|
0.05
|
0.40
|
